PV Elite is a complete solution for vessel and heat exchanger design, analysis and evaluation. Users of PV Elite have designed equipment for the most extreme uses and have done so quickly, accurately and profitably.
This new release includes the latest code updates, including:
- ASME VIII-1
- ASME VIII-2 Class 1 - New
- ASME VIII-2 Class 2
- Material Data
PV Elite 2018
also now generates a Maximum Safe Operating Temperature Curve, running through thousands of temperature and pressure combinations for each component to help users determine the appropriate operating scenario for their facilities.
PV Elite makes defining pressure boundary conditions for vessels and exchangers easy, even for load sets that require significant data input. PV Elite streamlines data entry by breaking the input down into sensible subsets. Help on any input item is only a keystroke away.

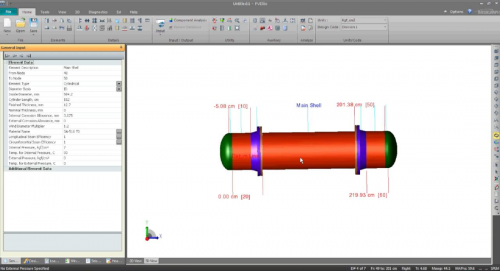

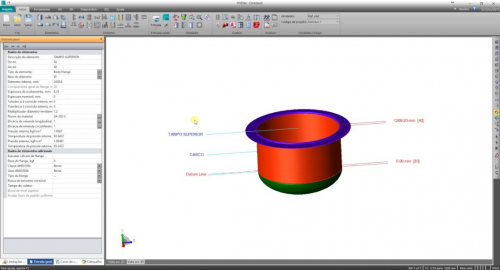

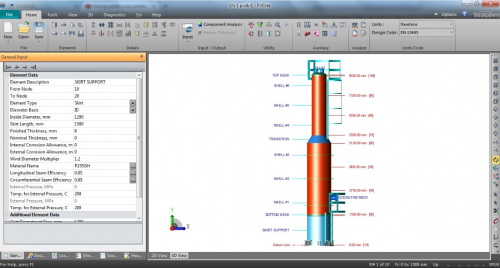

PV Elite's graphical representation of analysis models helps ensure confidence in the input and results. With PV Elite, analysis models can be viewed and manipulated with complete ease.
PV Elite performs calculations in accordance with ASME Section VIII, Divisions 1 & 2, PD 5500, and EN 13445. Rules from API 579 (Fitness for Service) are also included for evaluating the current state and remaining life of existing vessels.
Outputs and Reports
To simplify inspection requirements, PV Elite lists the most important equations such as required thickness and maximum allowable working pressure (MAWP) and also groups results by type (e.g. internal pressure, external pressure, bending stress, nozzles and flanges). Overall results are summarized where the element or detail controlling the overall vessel MAWP is identified.
Materials and Codes
PV Elite is a global package with international code rules plus extensive region-specific content. Vessel material definitions, piping and steel component data, local wind loads and local seismic loads of many regional markets are all included.
PV Elite interfaces with other popular software packages for finite element analysis, foundation design and drafting. PV Elite also shares a bi-directional link to CADWorx® Equipment module.
Component Design & Evaluation
PV Elite includes CodeCalc for quick and efficient component design and evaluation
Windows 7 / 8 / 8.1 / 10* Professional
Windows 7 / 8 / 8.1* Ultimate
Windows 7 / 8 / 8.1 / 10* Enterprise
Processor: 3.0 GHz Intel Pentium IV or higher AMD Athlon dual-core processor or higher
Memory: 4 GB RAM or higher (Windows 7/8/8.1)
Display: 1280x1024 or higher, with True Color
Video Card: 256 MB or greater video RAM, OpenGL 1.1 or later, DirectX 9.0 or later, drivers updated with the latest manufacturer's drivers (Motherboard-integrated video cards not recommended for desktop systems.)
Remote Technologies: Citrix XenApp 6.0 required on Windows Server 2008 R2 Enterprise
